USB Type A Female Port Pinout
Pinout diagram for the USB Type A Female Port.
Stripping A Micro USB Data Cable for the Game Boy Controller v2.1

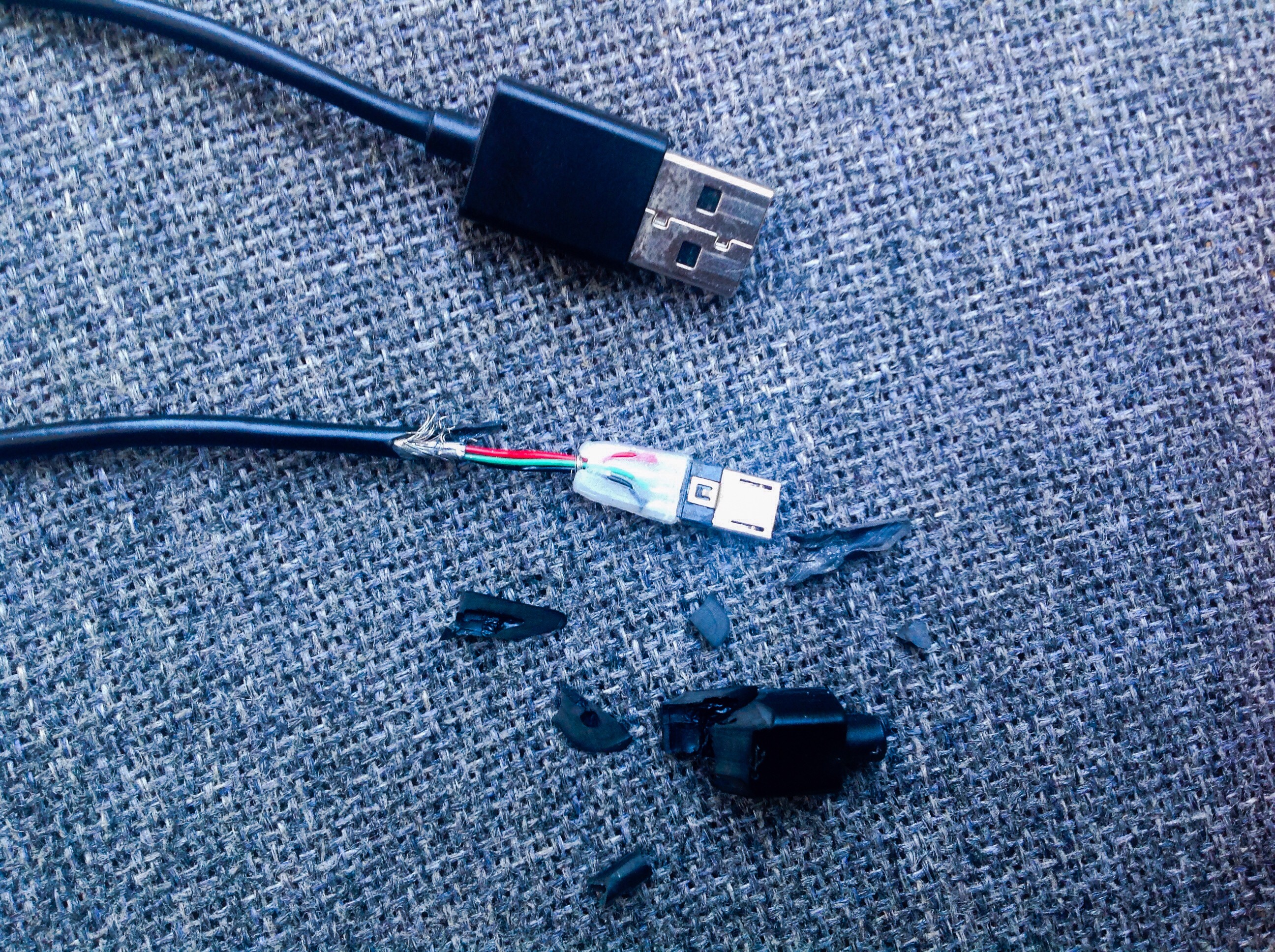

If you have a spare micro usb data cable, you can strip it for use with the Game Boy Controller v2.1. Some cables have different colors for the 5v, GND, D+, and D- wires so you may need a multimeter to verify the connections.

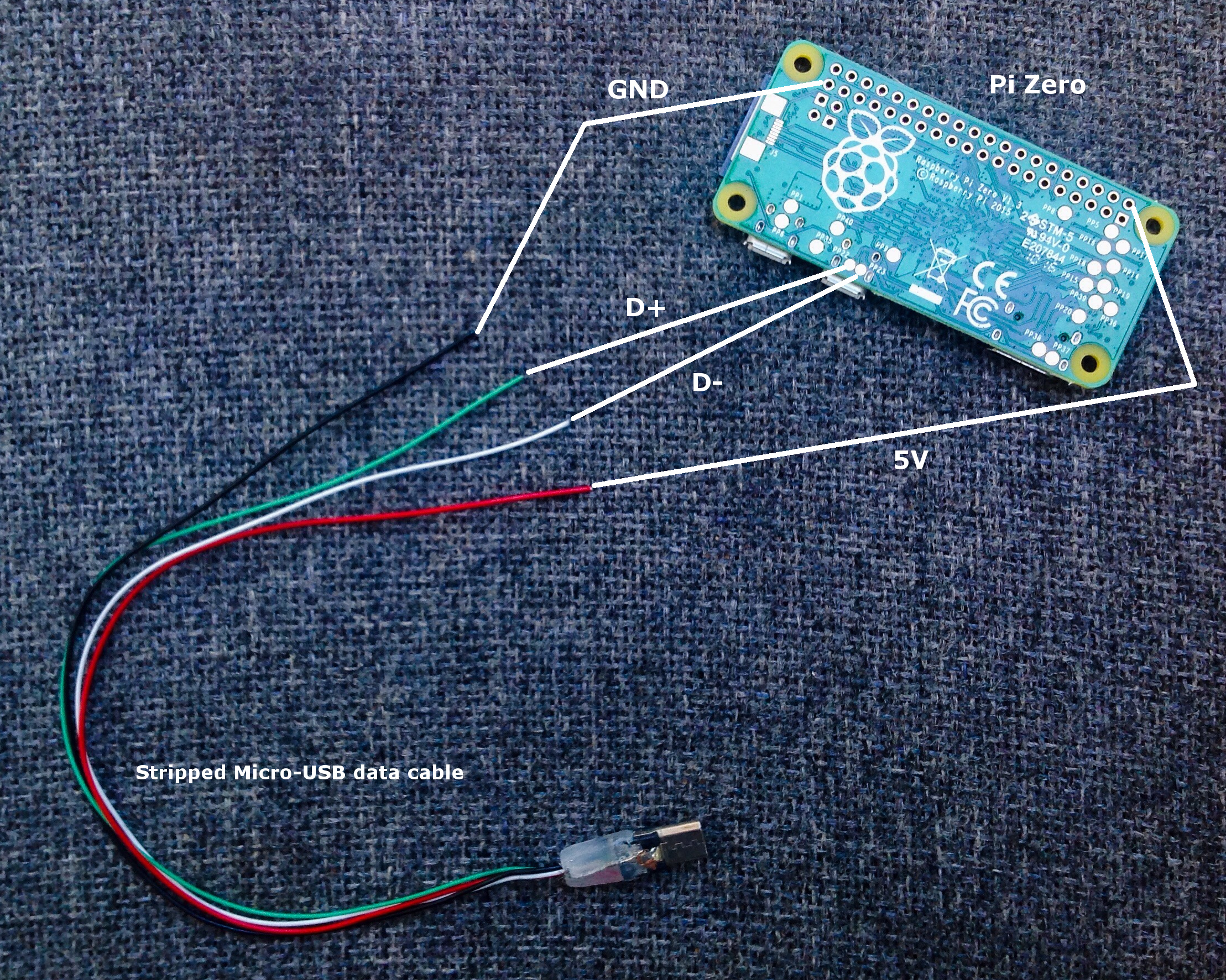

Here’s how you wire it to the Pi Zero
Pinout Diagrams for the PCM2704 and 3D Sound(COB) USB Sound Card Adapters

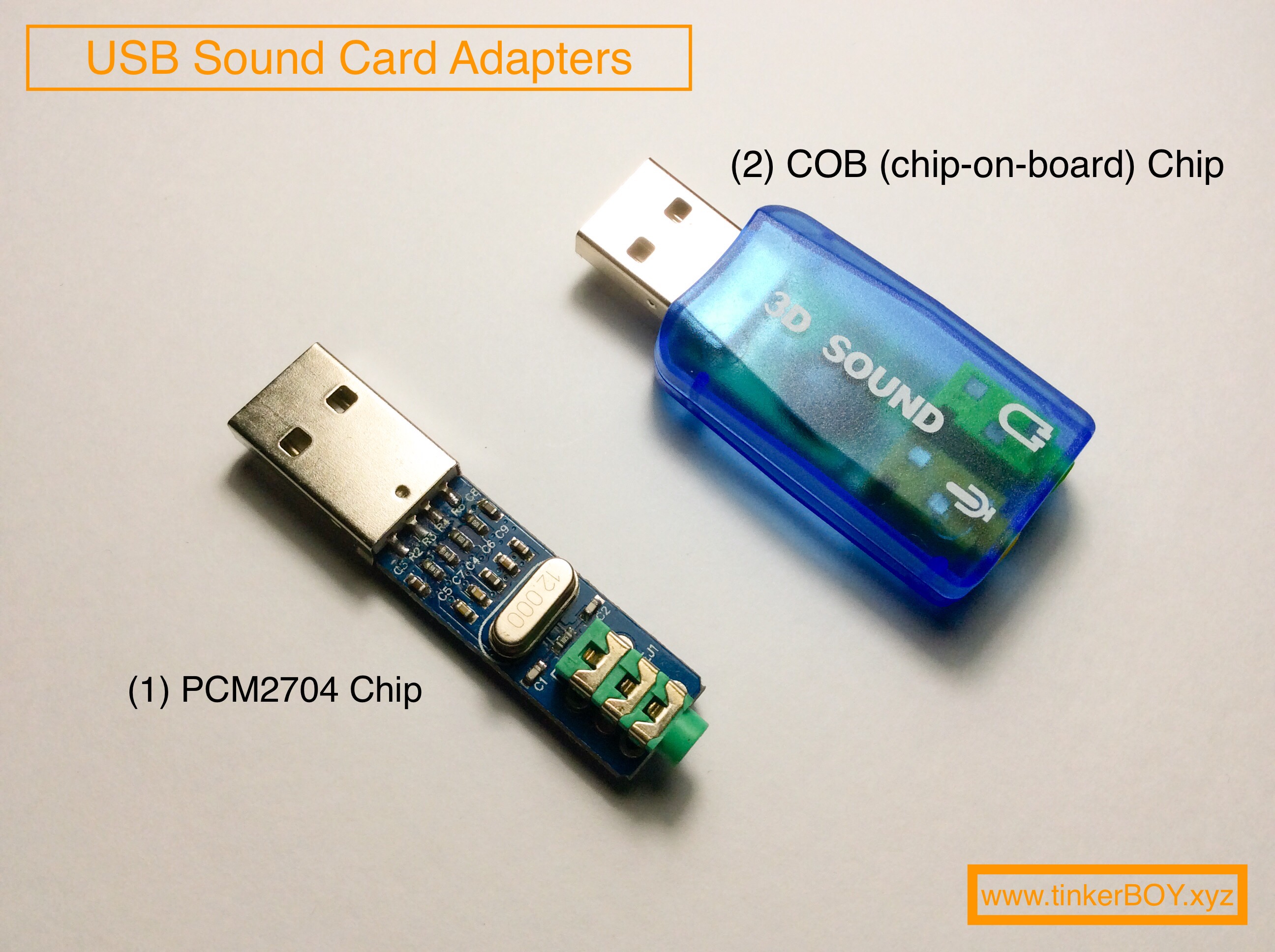

These are for the two most popular usb sound adapters with the (1) PCM2704 chip and (2) COB (chip-on-board) chip.

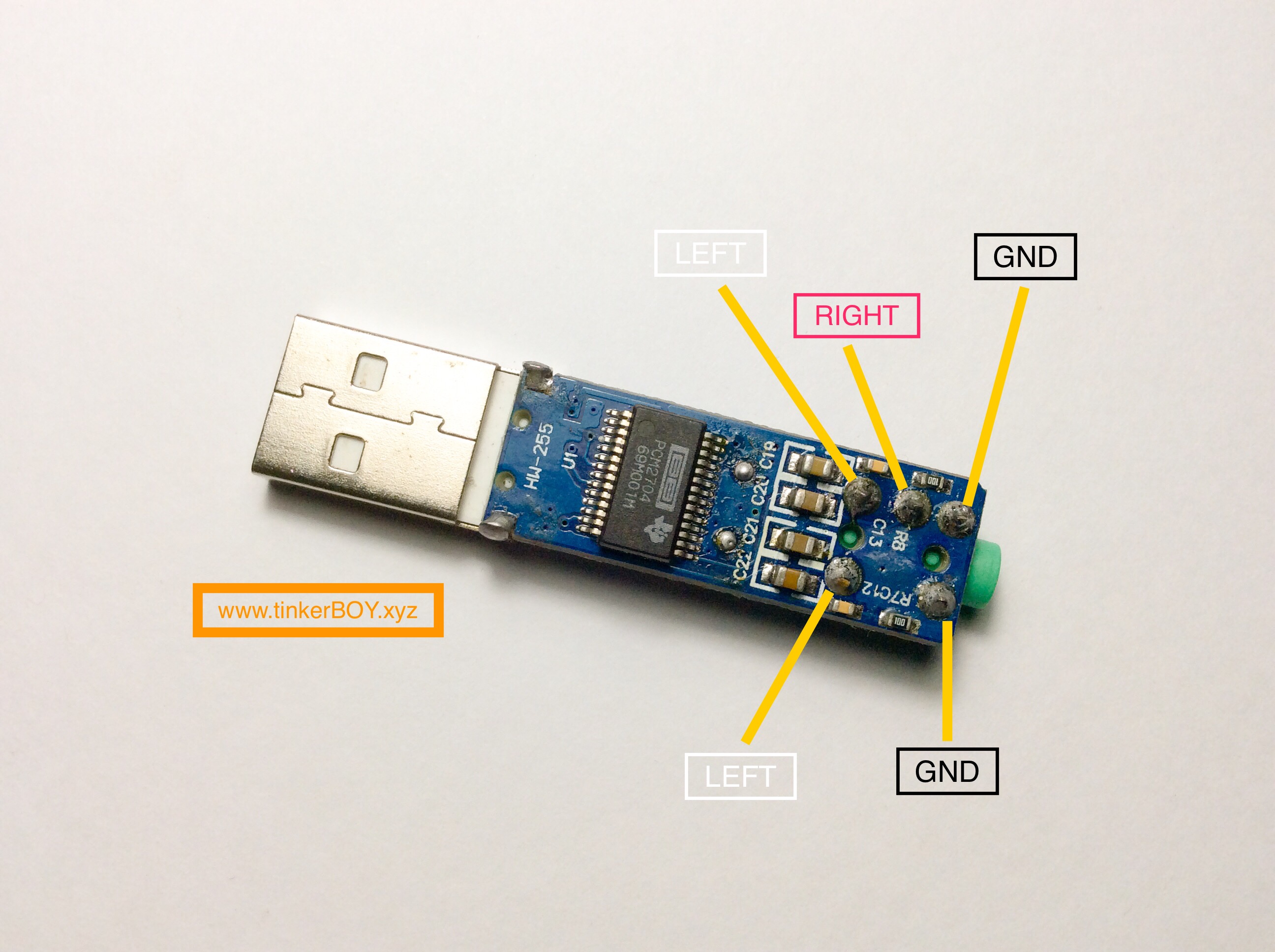

(1) USB Sound Card Adapter with PCM2704 chip
Top:
Bottom:
(2) 3D SOUND USB Sound Card Adapter with the COB chip
Top:
Bottom:
How to configure a USB sound card with RetroPie.
You can support me by buying the usb sound card adapter using this link or you can donate any amount via PayPal.
